| ชื่อแบรนด์: | Firepower |
| เลขรุ่น: | MFOG-40 |
| MOQ: | 1 |
| ราคา: | 1350$ |
| เงื่อนไขการจ่ายเงิน: | L/C, D/P, T/T, Western Union |
| ความสามารถในการจําหน่าย: | 500/เดือน |
| Attribute | Value |
|---|---|
| Range | ±300°/s |
| Zero-bias stability (10s, 1σ) | ≤0.5°/h |
| Angular random walk | ≤0.02°/h |
| 3dB Bandwidth | ≥300Hz |
| Zero-bias repeatability (1σ) | ≤0.5°/h |
| Scale factor nonlinearity | ≤500ppm |
| Dimension | φ40×20mm |
| Power Consumption | ≤1.5W |

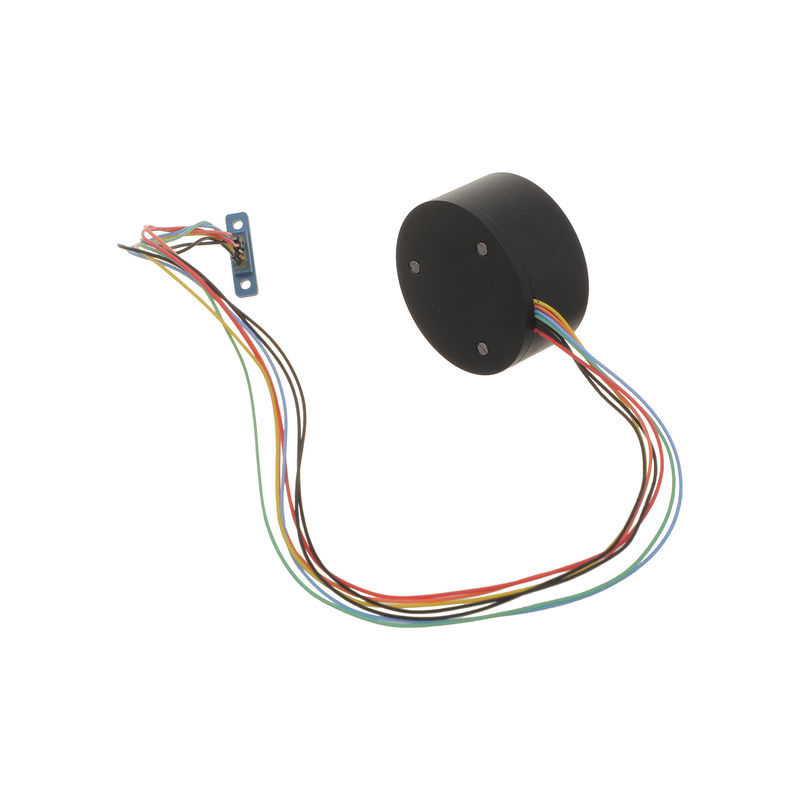

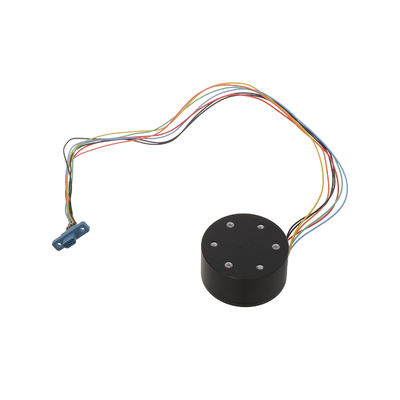

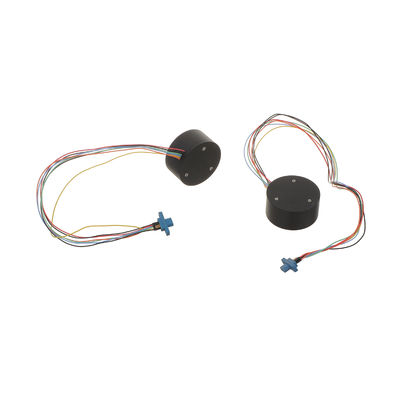

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes cutting-edge micro-nano fiber devices to achieve high-precision measurement. The gyroscope detects angular velocity by monitoring phase differences between counter-propagating light beams, processing this information through sophisticated electronics to provide precise feedback for control or measurement applications.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±300 |
| Scale Factor (LSB/°/s) | 3600 |
| Scale factor nonlinearity (ppm) | ≤500 |
| Zero-bias stability (10s, 1σ, °/H) | ≤0.5 |
| Zero-bias repeatability (1σ, °/H) | ≤0.5 |
| Angular random walk (°/H1/2) | ≤0.02 |
| Zero-bias stability at full temperature (°/H) | ≤1.5 |
| 3dB Bandwidth (Hz) | ≥300 |
| Power supply (V) | 5±0.15 |
| Power Consumption (W) | ≤1.5 |
