| ชื่อแบรนด์: | Firepower |
| เลขรุ่น: | MFOG-103 |
| MOQ: | 1 |
| ราคา: | 1350$ |
| เงื่อนไขการจ่ายเงิน: | L/C,D/P,T/T,Western Union |
| ความสามารถในการจําหน่าย: | 500/month |

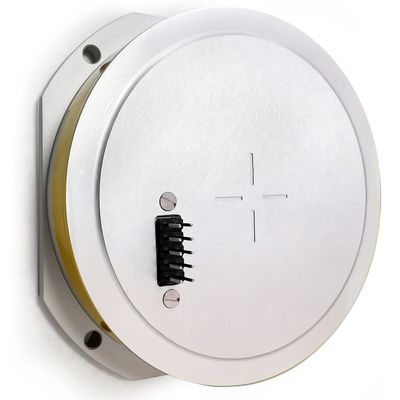

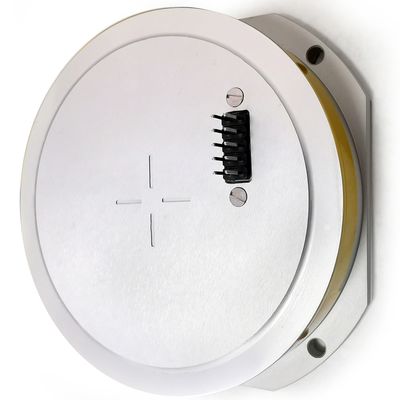

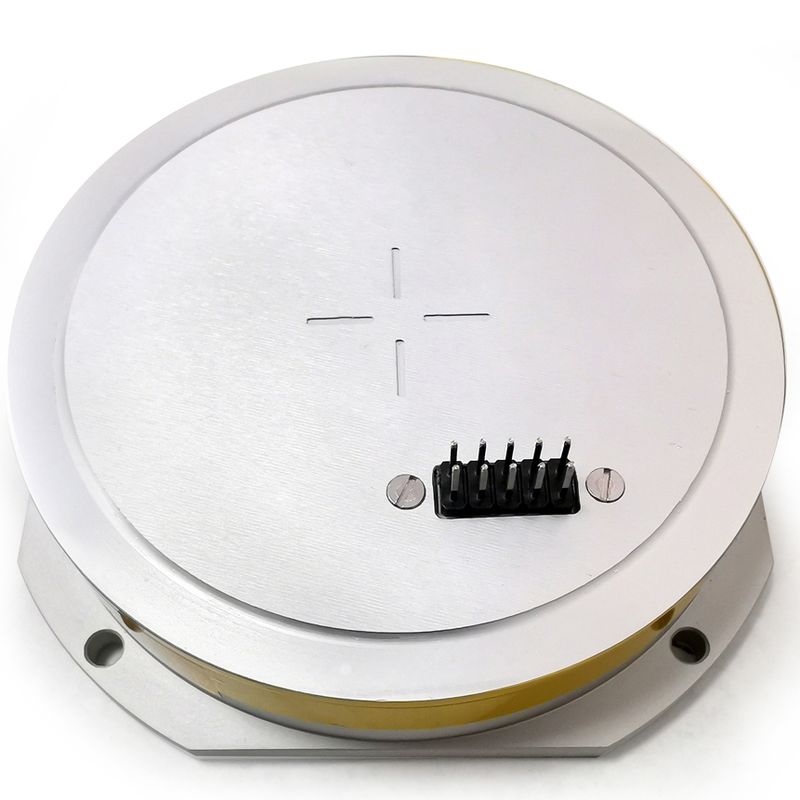

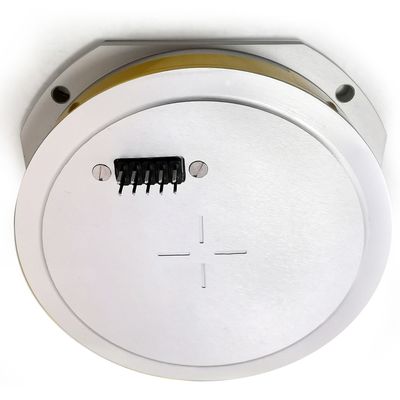

MFOG-103 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.
Table 1 Main Performance Parameters
| Serial number | Project | Performance indicators |
|---|---|---|
| 1 | Range (°/s) | ±350 |
| 2 | Scale factor (mV/ o /s) | 6±0.6 |
| 3 | Zero-bias stability (10s, 1σ, o /H) | ≤1 |
| 4 | Zero-bias repeatability (1σ, o /H) | ≤1 |
| 6 | 3dB Bandwidth (Hz) | ≥1000 |
| 7 | Random walk ( o /√ H) | ≤0.02 |
| 8 | Power supply (V) | 5+0.25 |
| 9 | Power Consumption (W) | ≤1 |
| 10 | Impact (g) | ≥1500 |
| 11 | Acceleration (g) | ≥70 |
| 12 | Service Life (years) (calculated assessment) | ≥15 |
| 13 | MTBF (Calculated Assessment) | ≥100000 |
Ideal for precision attitude measurement and control in:
