| ชื่อแบรนด์: | Firepower |
| เลขรุ่น: | MFOG-24 |
| MOQ: | 1 |
| ราคา: | 700$ |
| เงื่อนไขการจ่ายเงิน: | L/C, D/A, D/P, T/T ตะวันตกสหภาพ |
| ความสามารถในการจําหน่าย: | 500/เดือน |
Product Description

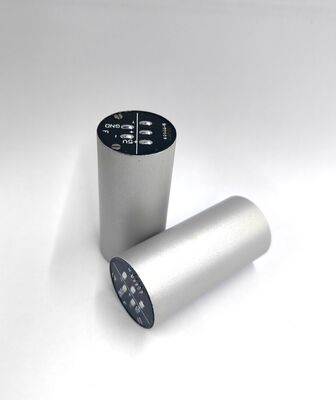

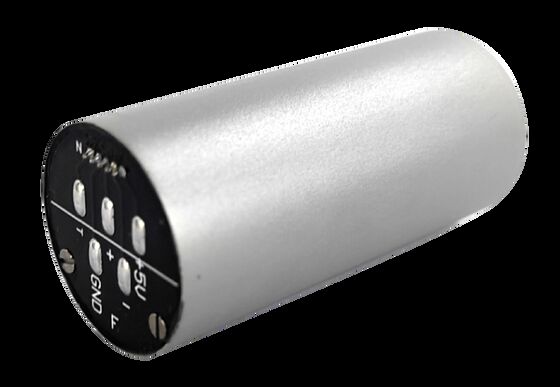

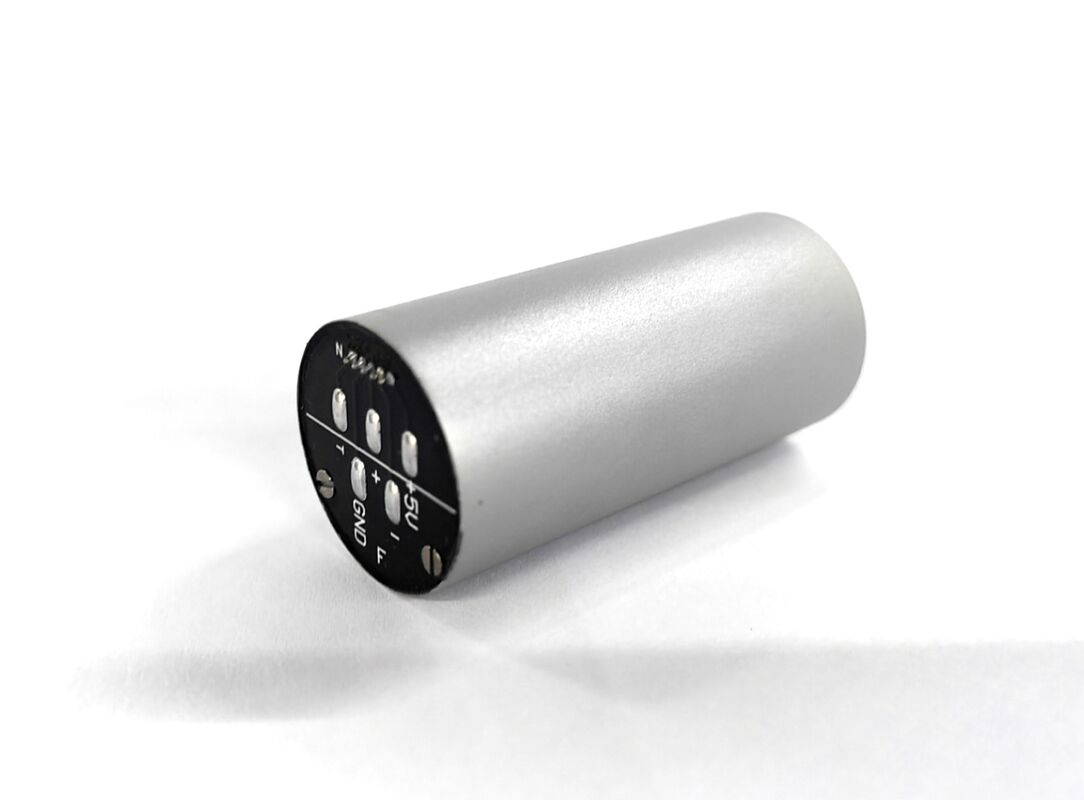

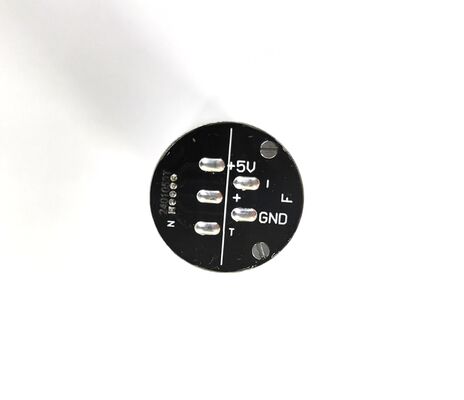

MFOG-24 Micro-Nano Fiber Optic Gyroscope is a compact high-performance angular rate sensor based on the Sagnac effect. Integrating optical, mechanical, and electronic systems, it detects rotational motion by processing phase differences between counter-propagating light beams.
With no moving parts, fast startup, and excellent environmental resistance, it is ideal for modern navigation platforms requiring high reliability.
Main Performance
|
Serial number |
Project |
Performance indicators |
|
|
MFOG-24 |
MFOG-24-AN |
||
|
1 |
Range (°/s) |
±500 |
±300 |
|
2 |
Scale factor |
3600(LSB/o/s) |
7mv/o/s |
|
3 |
Scale factor nonlinearity (ppm) |
300 |
≤1000 |
|
4 |
Zero-bias stability (10s, 1σ, °/h) |
≤1.5 |
≤2 |
|
5 |
Zero-bias repeatability (1σ, °/h) |
≤1.5 |
≤2 |
|
6 |
Angular random walk (°/h 1/2 ) |
≤0.03 |
≤0.04 |
|
7 |
Zero bias (°/s) |
≤0.02 |
≤0.05 |
|
8 |
3dB Band Width (Hz) |
≥300 |
≥450 |
|
9 |
Power supply (V) |
5+0.15 |
5+0.15 |
|
10 |
Power Consumption (W) |
≤1.5 |
≤0.7 |
|
11 |
Dimension (mm) |
φ24X39 |
|
