| ชื่อแบรนด์: | Firepower |
| เลขรุ่น: | MFOG-40 |
| MOQ: | 1 |
| ราคา: | 700$ |
| เงื่อนไขการจ่ายเงิน: | L/C, D/A, D/P, T/T ตะวันตกสหภาพ |
| ความสามารถในการจําหน่าย: | 500/เดือน |

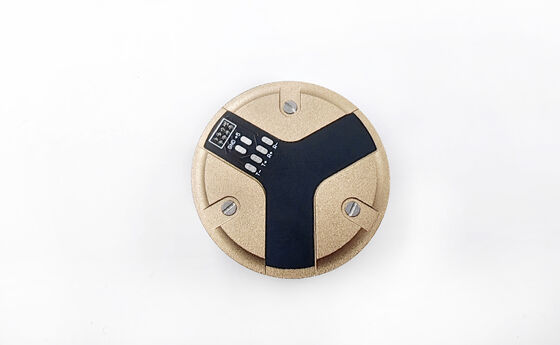

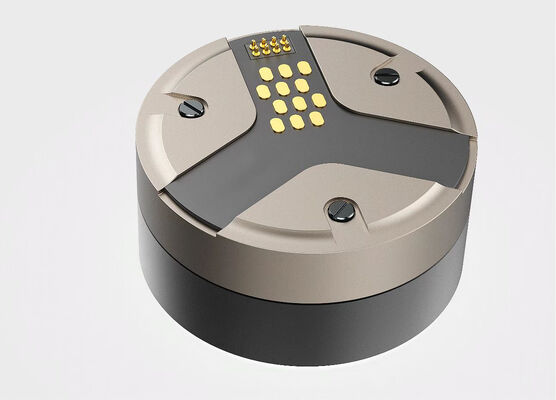

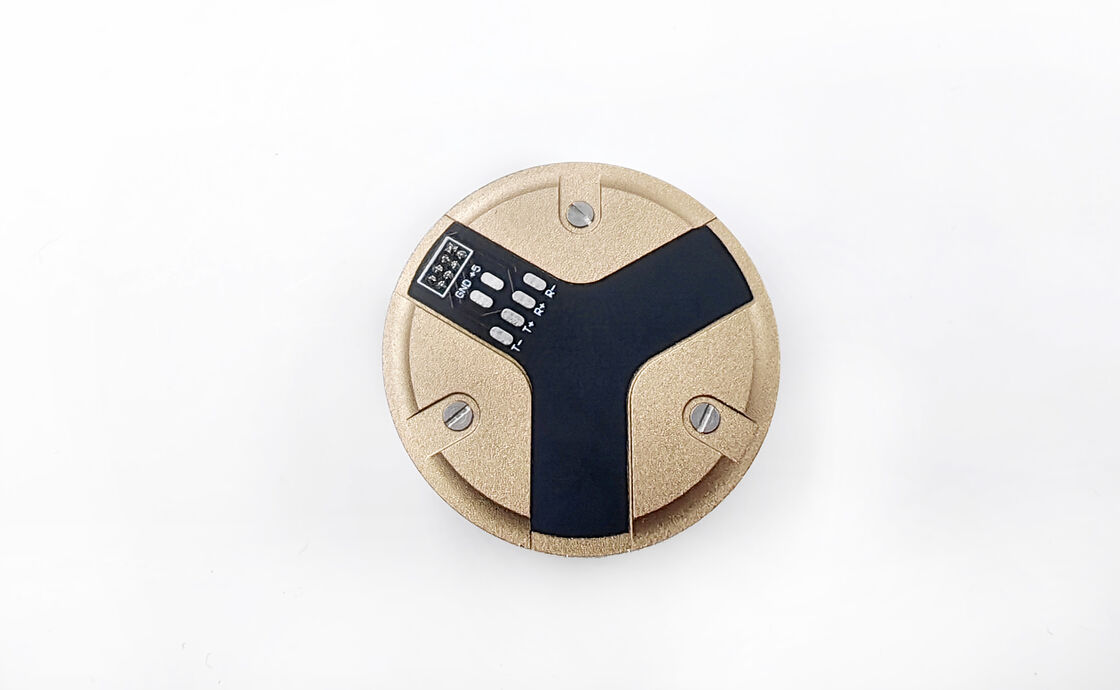

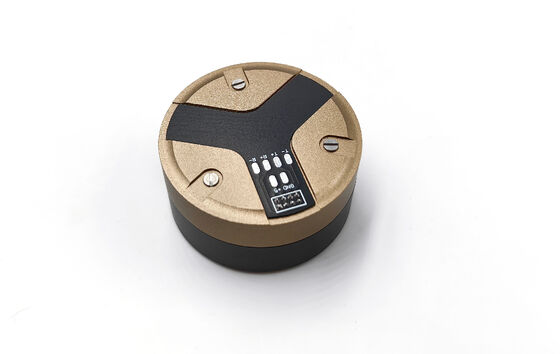

The MFOG-40 Micro-Nano Fiber Optic Gyroscope (FOG) is a high-performance angular rate sensor based on the Sagnac effect, integrating advanced optical, mechanical, and electronic technologies.
Designed with no moving parts, this gyroscope ensures exceptional reliability, long service life, and maintenance-free operation, making it ideal for demanding industrial and defense-grade applications.
With its compact size (φ40×20mm), lightweight structure (≤40g), and low power consumption, the MFOG-40 is perfectly suited for embedded systems requiring high-precision attitude measurement and motion control.
| Parameter | Value |
|---|---|
| Measurement Range | ±300°/s |
| Scale Factor | 3600 LSB/(°/s) |
| Scale Factor Nonlinearity | ≤500 ppm |
| Bias Stability (10s, 1σ) | ≤0.8°/h |
| Bias Repeatability (1σ) | ≤0.8°/h |
| Angular Random Walk | ≤0.02°/√h |
| Bias Stability (Full Temp) | ≤1.5°/h |
| Bandwidth | ≥300 Hz |
| Power Supply | 5V ±0.15V |
| Power Consumption | ≤1.5W |
| Dimensions | φ40 × 20 mm |
| Weight | ≤40g |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -55°C ~ +85°C |
