| ชื่อแบรนด์: | Firepower |
| เลขรุ่น: | MFOG-24 |
| MOQ: | 1 |
| ราคา: | 700$ |
| เงื่อนไขการจ่ายเงิน: | L/C, D/A, D/P, T/T ตะวันตกสหภาพ |
| ความสามารถในการจําหน่าย: | 500/เดือน |

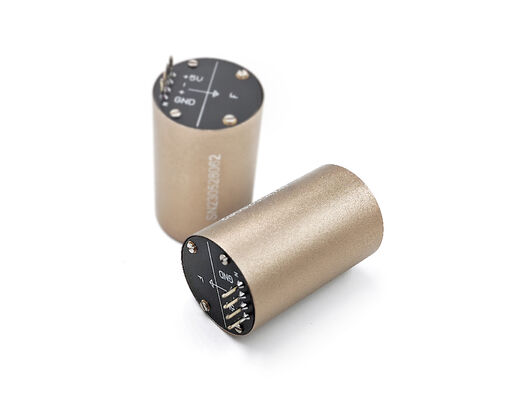

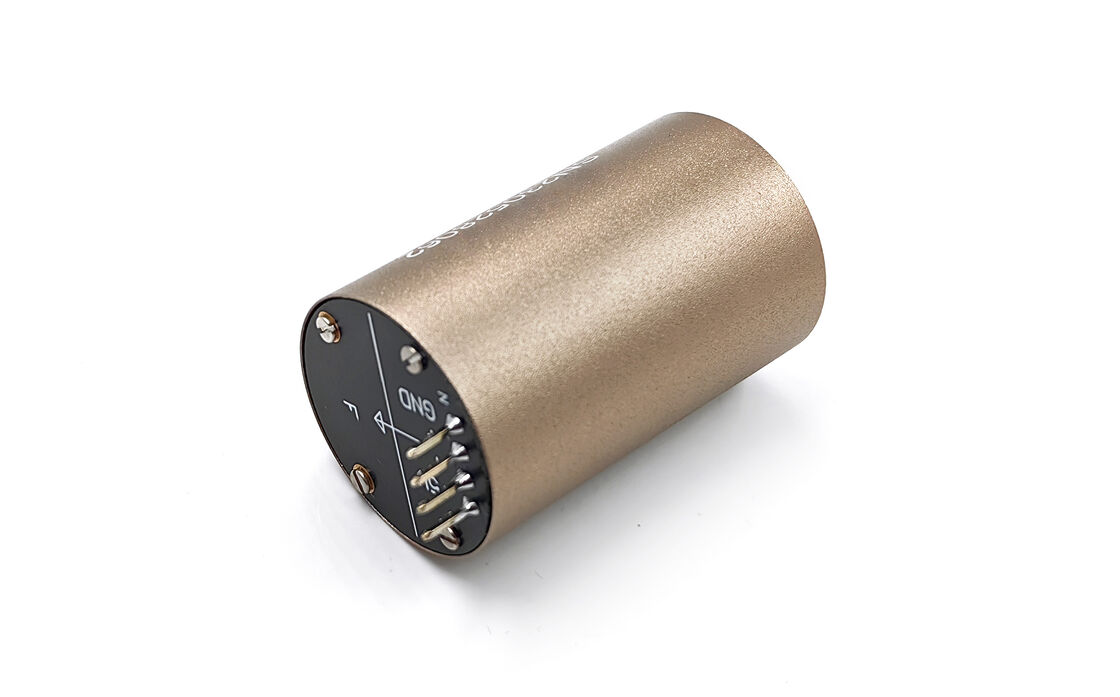

MFOG-24 is a next-generation micro-nano fiber optic gyroscope designed for precise motion sensing. With a cylindrical form factor of φ24×39mm and a weight under 30g, it provides robust performance even in harsh environments (-40℃ to +65℃ operating range). The absence of moving parts ensures zero mechanical wear, high reliability, and long service life.
| Parameter | Unit | MFOG-24 | MFOG-24-AN | Fizoptika VG191AD |
|---|---|---|---|---|
| Measurement Range | °/s | ±500 | ±300 | 300 |
| Scale Factor | LSB/°/s or mV/°/s | 3600 LSB/°/s | 7 mV/°/s | 0.02 % RMS |
| Scale Factor Nonlinearity | ppm | 300 | ≤1000 | N/A |
| Zero-Bias Stability (10s, 1σ) | °/h | ≤1.5 | ≤2 | 1 (Allan variance min) |
| Zero-Bias Repeatability (1σ) | °/h | ≤1.5 | ≤2 | N/A |
| Angular Random Walk (ARW) | °/√h | ≤0.03 | ≤0.04 | 0.012 |
| Bandwidth (3dB) | Hz / kHz | ≥300 Hz | ≥450 Hz | 0.6 kHz |
| Magnetic Response | °/h/Gauss | N/A | N/A | 3 / 0.05 typical |
| Initialization | s | Fast | Fast | 0.03 |
| Power Supply | V | 5 ±0.15 | 5 ±0.15 | +5V |
| Power Consumption | W | ≤1.5 | ≤0.7 | 0.5 |
| Data Rate | kHz | N/A | N/A | 8 (24-bit) |
| Baud Rate | kBd | N/A | N/A | 921.6, RS422 asynchronous |
| Operating Temperature | °C | -40~+65 | -40~+65 | -40…+70 |
| Endurance / Storage Temperature | °C | -55~+85 | -55~+85 | -55…+85 (>2h, non-operating) |
| Random Vibration | g | 20, 20-2000 Hz | 20 g | 18 g, 20-2000 Hz RMS |
| Shocks | g | N/A | N/A | 750 g, 1 ms half-sine |
| Dimensions | mm | φ24 × 39 | φ24 × 39 | φ24 × 48 |
| Weight | g | ≤30 | ≤30 | 30 / 45 |
| Housing | -- | Structural + Optical + Electronics | Structural + Optical + Electronics | Al alloy / μ-metal, IP67 |
| MTBF / Lifetime | yr | N/A | N/A | 15 (humidity conditions applied) |
| Moving Parts | -- | None | None | None |
| Start-up | -- | Fast | Fast | 0.03 s |
| Applications | -- | UAV, Robotics, Attitude Control, Precision Measurement | UAV, Robotics, Attitude Control, Precision Measurement | UAV, Robotics, Attitude Control, Precision Measurement |
| Replacement | -- | Fizoptika VG191AD compatible | Fizoptika VG191AD compatible | N/A |
Navigation for drones, autonomous vehicles, robotics, and industrial motion control. Serves as a drop-in replacement for Fizoptika VG191AD.
| Number | Definition |
|---|---|
| 1 | 5V |
| 2 | Analog output Low |
| 3 | Analog Output High |
| 4 | GND |
